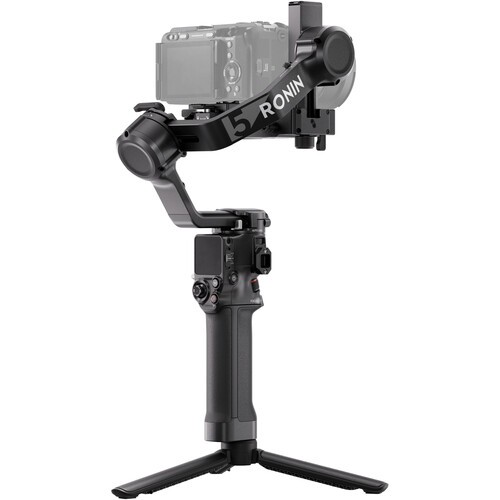

DJI RS 5 Handheld Camera Gimbal Stabilizer

DJI RS 5 Handheld Camera Gimbal Stabilizer

The DJI RS 5 Handheld Camera Gimbal Stabilizer is a premium handheld camera stabilizer designed for filmmakers, videographers, and content creators who demand precision and reliability. With a tested payload capacity of 3.0 kg (6.6 lbs), it supports a wide range of DSLR and mirrorless cameras, ensuring flexibility across diverse shooting scenarios. Its advanced mechanical range includes 360° continuous pan rotation, -95° to +240° roll, and -112° to +214° tilt, enabling dynamic angles and creative freedom. The gimbal integrates auto axis lock, vertical shooting support, and a maximum controlled rotation speed of 360°/s, making it ideal for fast-paced environments. Connectivity is streamlined with Bluetooth 5.0 and USB-C ports, while the Ronin app (compatible with iOS 14.0+ and Android 9.0+) provides intuitive control. With multilingual touchscreen support and an operating temperature range of -20° to 45° C, the DJI RS 5 Gimbal Stabilizer is built to perform in challenging conditions.

Battery Performance & Charging Efficiency

Powering the DJI RS 5 Gimbal Stabilizer is the BHX715-2150-15.48 LiPo 4S battery, offering a 2150 mAh capacity and 33.29 Wh energy rating. With a voltage range of 11.2 V to 17.8 V, it supports multiple USB input options from 5 V/3 A up to 20 V/3 A, ensuring flexible charging compatibility. Under optimal conditions, the gimbal achieves up to 14 hours of standby time (tested with the DJI RS BG33 Battery Grip). Charging is efficient, taking approximately one hour with a 65W PD-compatible charger at 25° C. The recommended charging temperature spans 5° to 40° C, ensuring safe and reliable battery performance for extended shoots.

Accessories, Dimensions & Portability

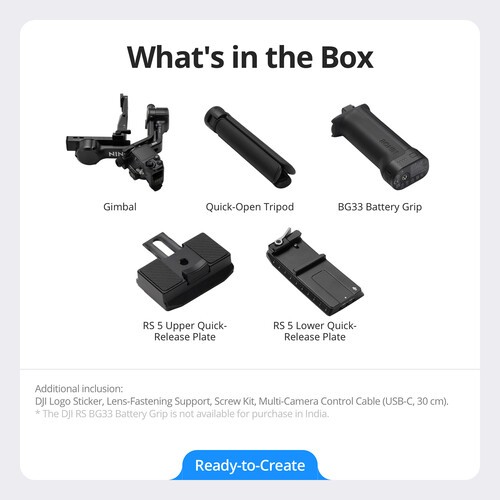

The DJI RS 5 Gimbal Stabilizer is complemented by intelligent accessories that enhance functionality. The Enhanced Intelligent Tracking Module enables gesture-based control for tracking, recording, and framing adjustments, while the Electronic Briefcase Handle adds ergonomic support with minimal power consumption. The gimbal itself weighs approximately 1193 g, with additional components such as the grip (274 g), quick-open tripod (149 g), and quick-release plates (96 g). Folded dimensions measure 247.4×115.7×258.7 mm, while unfolded dimensions extend to 223.2×192.2×418.8 mm, balancing portability with operational flexibility. Together, these features make the DJI RS 5 Gimbal Stabilizer a powerful, professional-grade solution for smooth, stable, and creative video production.
